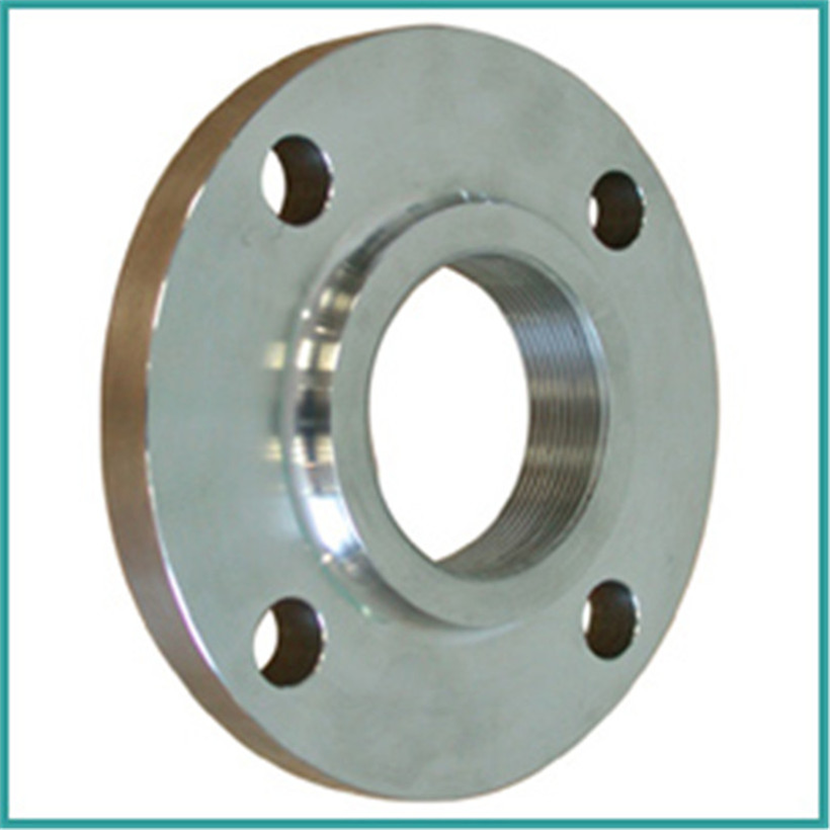

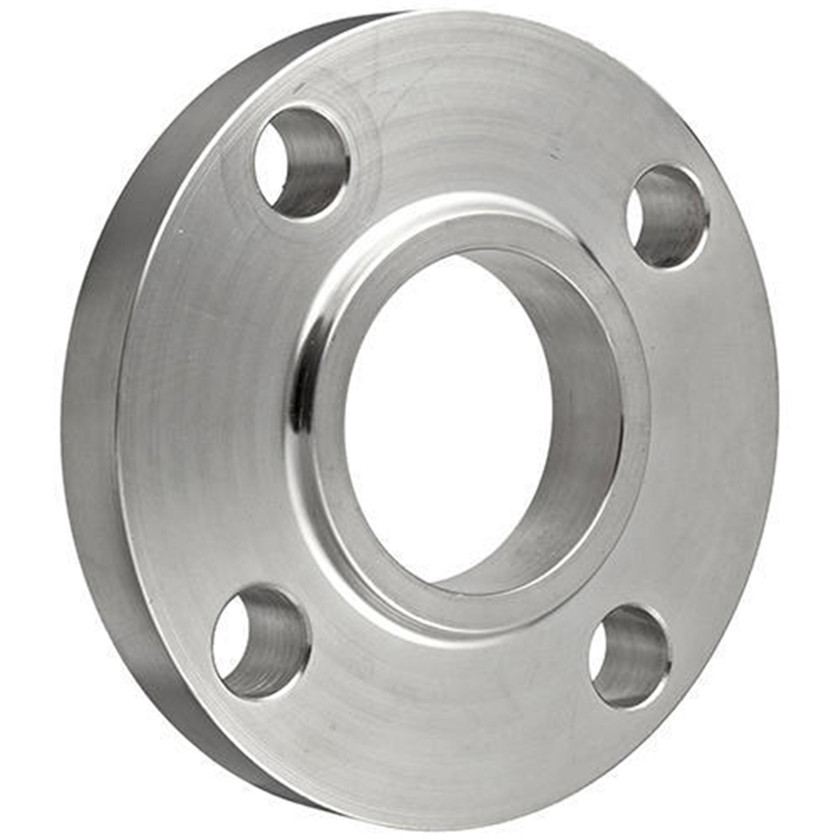

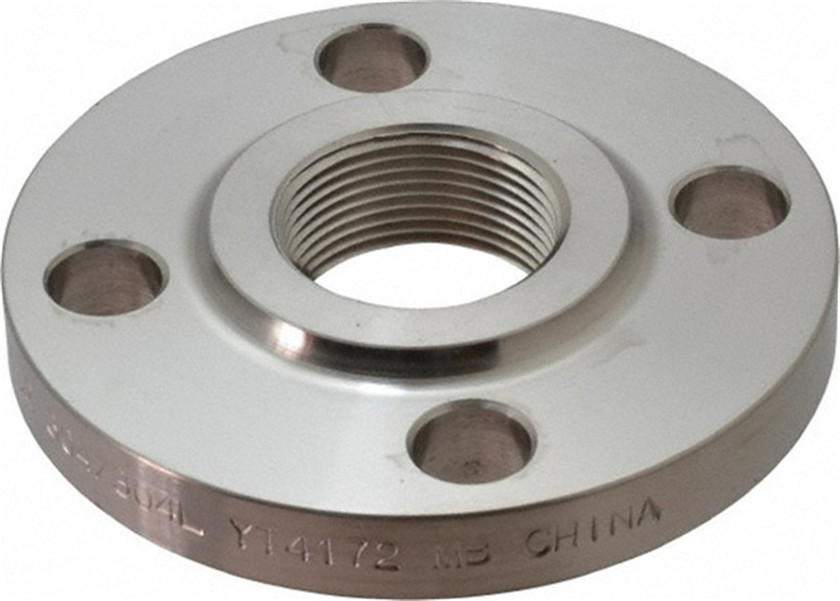

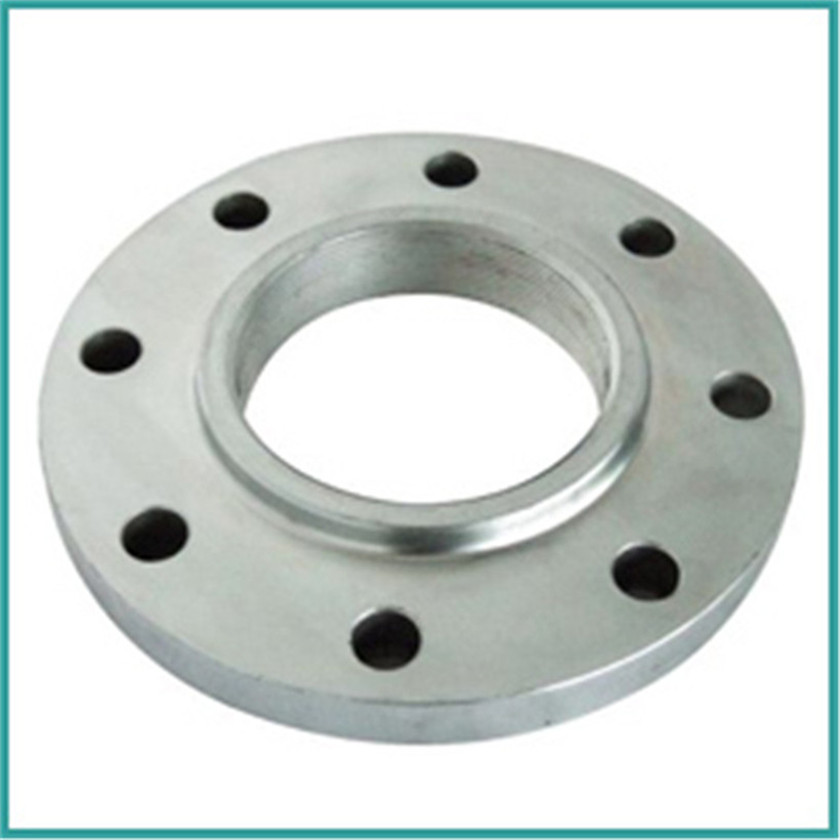

ANSI/ASME B16.5 Stainless Steel Threaded Flange

Threaded pipe flanges are the special type of flanges which can be attached to the pipe without welding. Threaded flanges are threaded in the bore which matches an external thread on the pipe. Threaded pipe flanges is just like to slip-on pipe flanges that are used with pipes that have external threads. It is used where small diameter and high pressure is required. These flanges are available in all materials, specifications, sizes and grades.

Key Features of Threaded Flange:

• No welding is needed
• Good for smaller pipe sizes
• Should be avoided for larger roads

Uses of threaded Flanges:

• It can be fitted to pipes of various sizes without welding
• Used in extremely high pressure applications
• Economical and time saving equipment
• Can be used in applications where welding is hazardous

Threaded pipe flanges are typically provided with a raised face, flat face, or RTJ facing. When a raised face is essential for threaded pipe flanges, the standard height is 1/16″ for threaded pipe flanges under 400#. For threaded pipe flanges of 400# and up, the standard threaded pipe flange raised face height is 1/4″.

MARKING AND PACKING

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

At Hebei Mingda, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch.

They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to

witness the material reports, dimensions and quality conformity of products.

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

Delivery time and delivery dates are based on the “type and quantity” of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.

Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If Flange is out of stock, orders may take up to 2-4 weeks to ship.

Hebei Mingda will notify buyer if this situation occurs..
