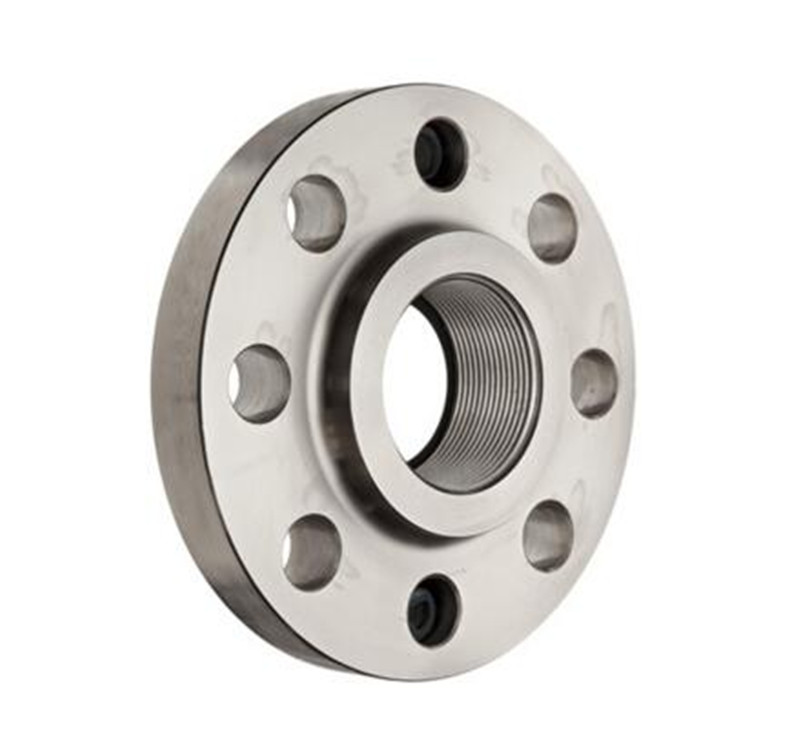

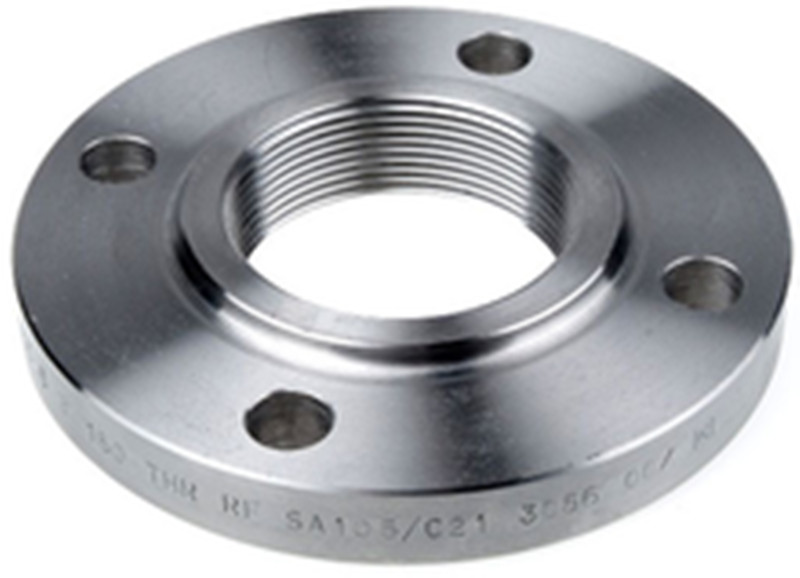

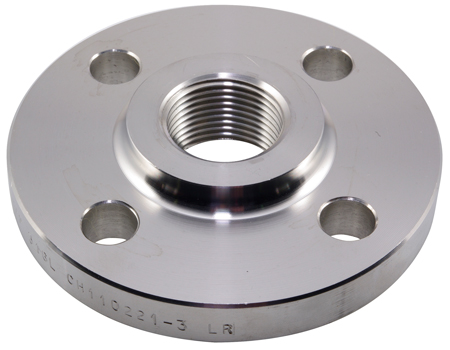

Stainless Steel Forged Threaded Flange

Threaded flanges are similar to slip-on pipe flanges except the bore of threaded pipe flange has tapered threads. Threaded pipe flanges are used with pipes that have external threads. The benefit of these pipe flanges is that it can be attached without welding. Threaded pipe flanges are often used for small diameter, high pressure requirements. Slip on Pipe flanges with a hub have published specifications that range from 1/2″ thru 24″. We provides Slip-On pipe flanges in all material grades, specifications and sizes.

Threaded pipe flanges are typically provided with a raised face, flat face, or RTJ facing. When a raised face is necessary for threaded pipe flanges, the standard height is 1/16″ for threaded pipe flanges under 400#. For threaded pipe flanges of 400# and up, the standard threaded pipe flange raised face height is 1/4″.

Hebei Mingda Flange manufactures threaded pipe flanges in all steel material grades, including carbon threaded pipe flanges, stainless steel threaded pipe flanges and alloy threaded pipe flanges. Coastal Flange also has many different threaded pipe flanges in stock and ready to ship.
