What Pros Look For in U-Style Drain Covers: An Insider Take on u channel grating

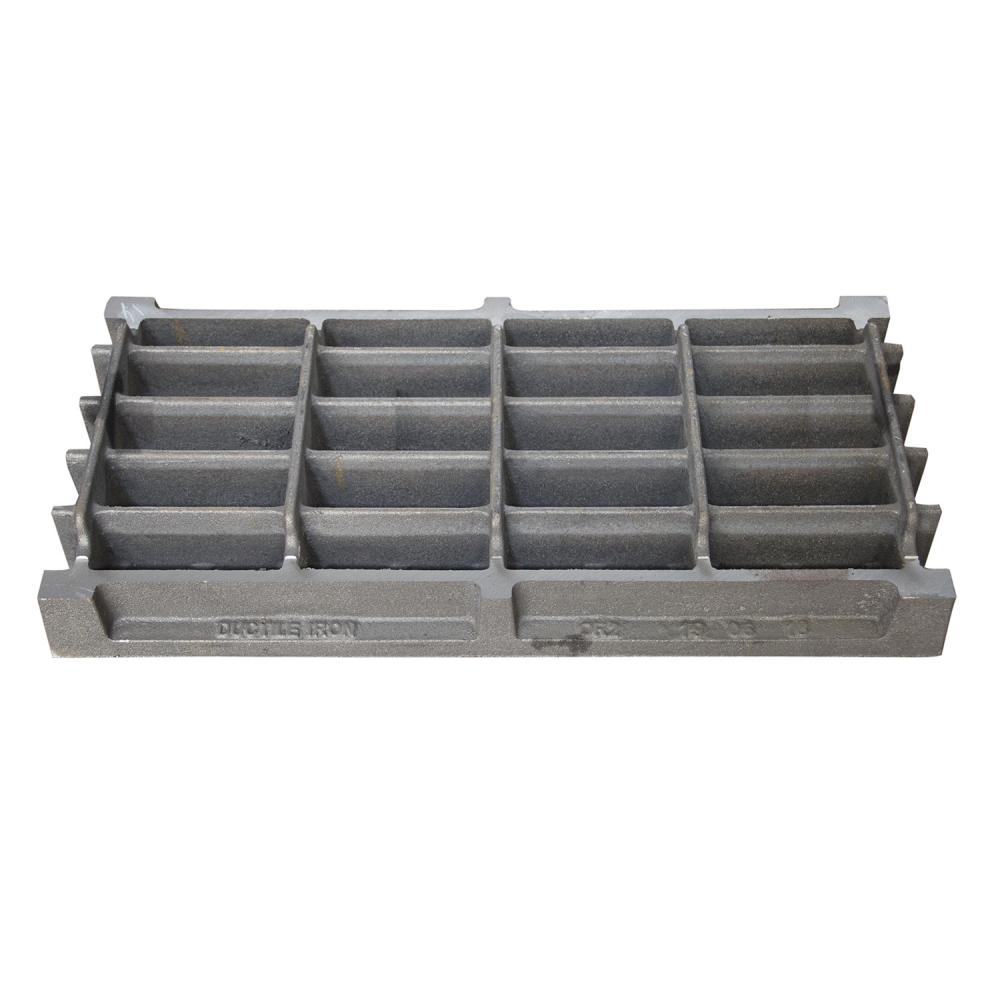

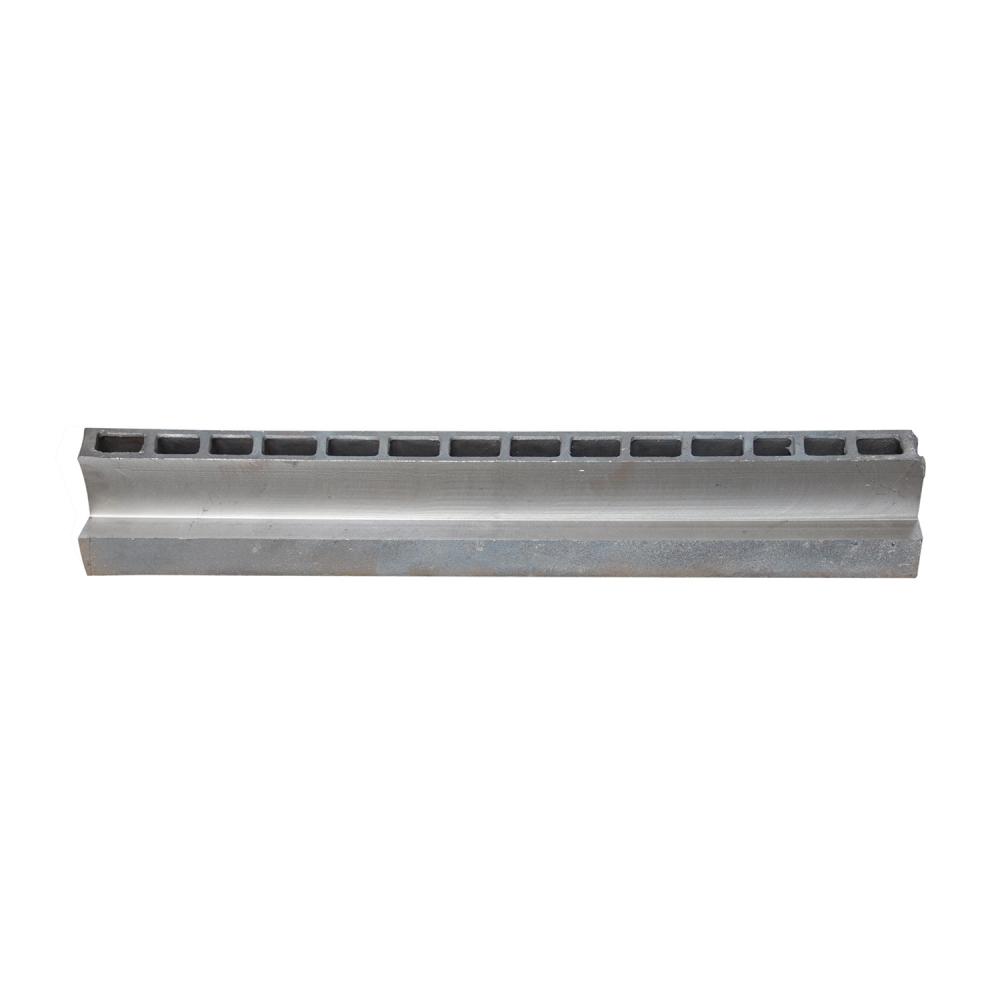

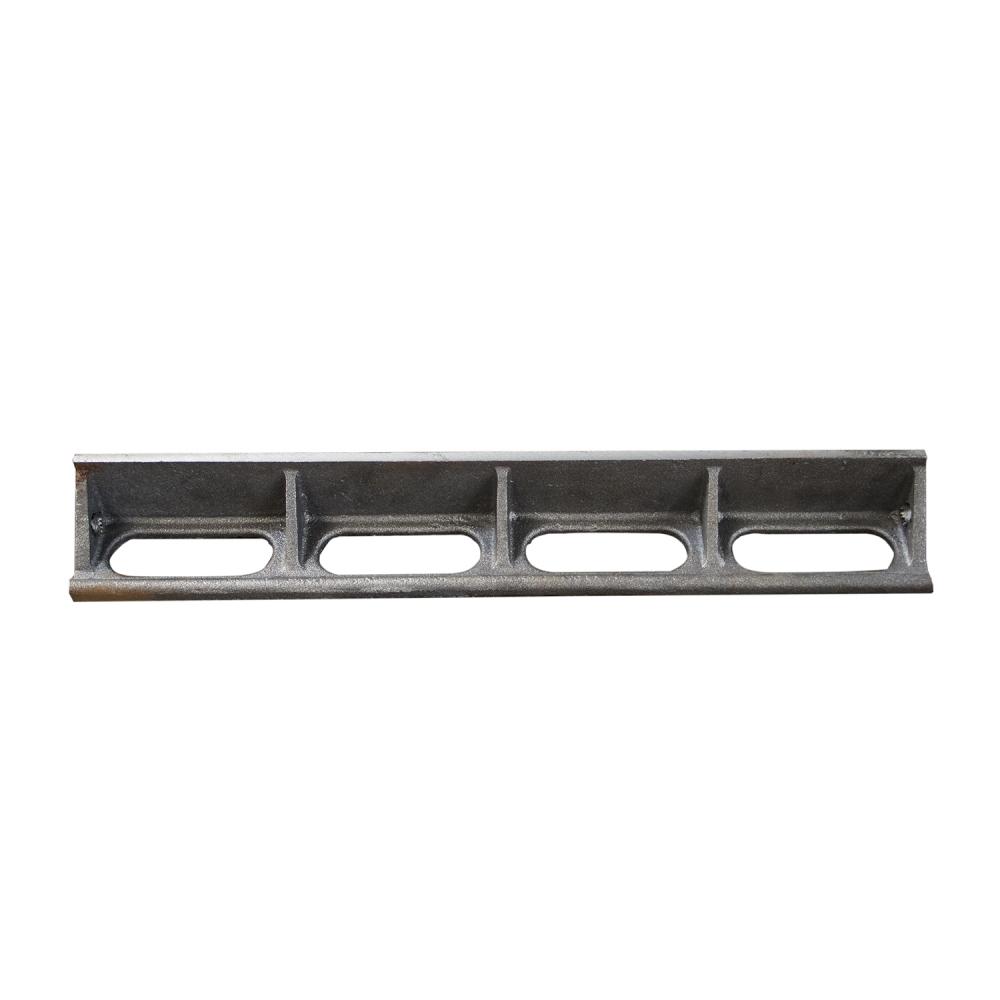

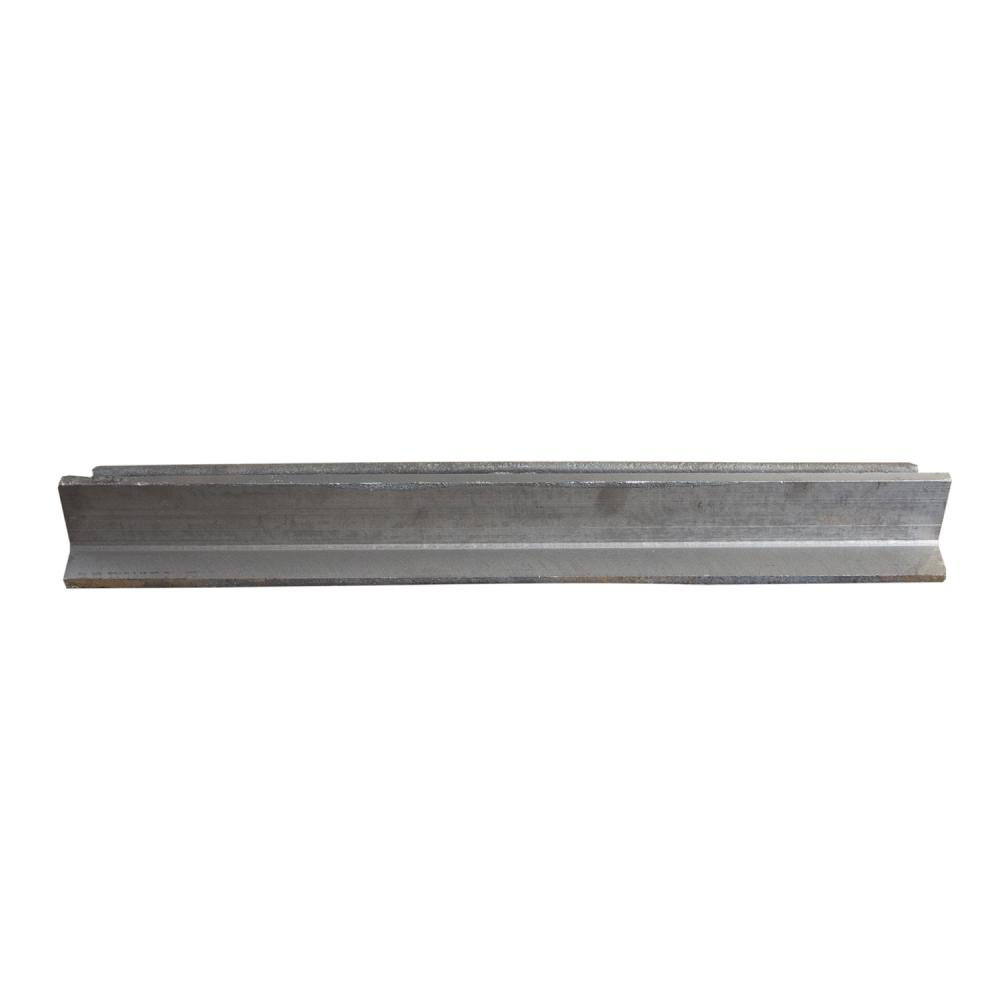

If you manage sites where runoff can wreck a schedule—ports, food plants, airports—you already know the humble drain cover does outsized work. The Heavy Duty Iron Casting Drain Grating from Mingda Metals is purpose-built for U-shaped drainage channels, and, to be honest, it’s the kind of kit maintenance teams keep requesting because it simply lasts.

Industry trends and where this fits

Two things are shaping the current drainage market: higher axle loads and stricter hygiene/corrosion expectations. Urban freight streets are edging toward D400/E600 classes, while food and chemical plants need smoother surfaces and dependable coatings. A well-cast u channel grating in gray or ductile iron still hits the sweet spot on strength, price, and availability—especially when the foundry can customize slot patterns and widths to your channel profile.

How it’s made (process flow that actually matters)

Materials: Gray iron (ASTM A48 Class 35B) or Ductile iron (ASTM A536 65-45-12), chosen per load class.
Molding: Clay dry sand with resin sand cores, dimensional stability ≈ better fit and fewer rattles.
Method: Directional crystallization casting for tighter grain and impact resistance.
Finishing: Shot-blast, deburr, optional bituminous or epoxy coating for corrosion protection.
Testing: EN 124 load testing (A15–E600), hardness (HB), dimensional checks, optional salt spray (ISO 9227).
Traceability: Heat number and batch ID; SGS inspection available.

Product specs at a glance

Parameter	Typical Value/Range	Notes
Material	Gray Iron or Ductile Iron	ASTM A48 / A536 or ISO 1083
Load Class	C250–E600	EN 124-2 compliance
Channel Fit	U-profile, widths 100–500 mm	As per drawing (custom)
Coating	Black bitumen or epoxy	Salt spray 240–480 h ≈; real use may vary
Service Life	25–40 years	With routine inspection
Certifications	SGS, ISO 9001:2008	Mill test reports provided

Where it’s used (and what users say)

Municipal streets and curbs (D400) — crews note quieter seating after switch to keyed frames.
Airside aprons (E600) — maintenance likes the predictable fit under heavy tug traffic.
Food plants — smoother tops reduce gunk build-up; cleaning times dropped “by about 15%,” one supervisor told me.
Warehousing ramps — fewer cracked covers compared with lighter steel mesh alternatives.

Vendor comparison (quick reality check)

Vendor	Standards	Lead Time	Customization	Notes
Mingda Metals (Shijiazhuang, Hebei)	EN 124, ASTM A48/A536, ISO 9001	≈ 25–35 days	As per drawing, slot pattern, logo	SGS reports; solid batch traceability
Local Foundry A	Varies; often EN 124	10–20 days	Limited sizes stocked	Faster, but higher unit cost
Import Trader B	Claims EN 124	35–55 days	Catalog only	Check third-party load tests

Case notes from the field

– Port retrofit: Swapped mixed steel covers with ductile-iron u channel grating, E600 spec; axle load complaints dropped to zero in 6 months.
– Beverage plant: Changed to epoxy-coated gray iron; washdown corrosion slowed markedly after 360 h salt-spray qualification.
– Logistics hub: Custom slot geometry reduced wheel entrapment; forklift tires lasted longer (anecdotal but consistent).
