Lost Wax Casting: Why Our China Factory Delivers Precision?

What Manufacturers Really Need to Know About lost wax casting in 2025

If you’re speccing stainless parts for machinery—and you want near-net shapes without a machining hangover—this process keeps popping up. To be honest, it’s having a bit of a moment. Between reshoring pressures, tighter tolerances, and the push for corrosion-proof hardware, lost wax casting is quietly replacing old-school sand cast and even some billet machining programs.

Why the buzz now?

• Miniaturization + complexity: thin walls, undercuts, fine lettering—no drama.
• Digital tooling: printed patterns reduce lead time and tweak costs.
• Surface finish: Ra ≈ 6.3 μm out of the shell, polishing pushes it further.
• Sustainability: higher yield, less chip waste than billet machining.

Process flow (real-world, not brochure-ware)

Typical stainless program for machinery parts runs like this: wax injection (pressure-injected patterns), treeing, ceramic shell build (slurry + stucco cycles), dewax (autoclave), shell firing, thermal gravity pour, knockout, cut-off, heat treatment, CNC finish where needed, polishing/passivation (ASTM A967), and final inspection. Dimensional checks usually map to ISO 8062-3 CT6–CT7; functional faces are machined to ±0.01 mm when needed. NDT is often PT (ASTM E1417) and spot RT for safety-critical features.

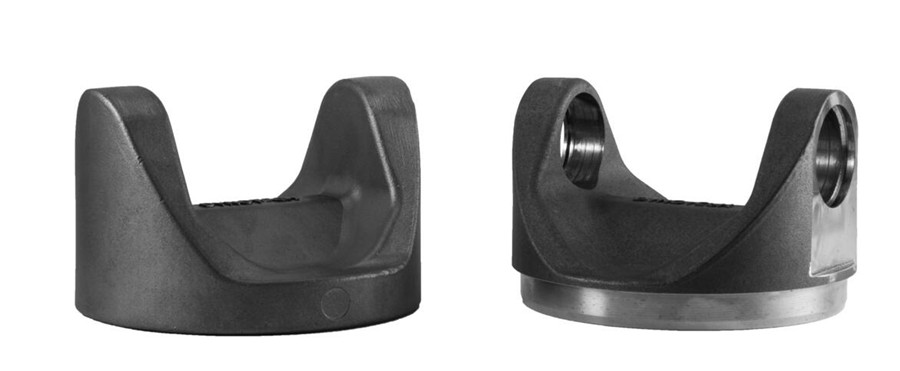

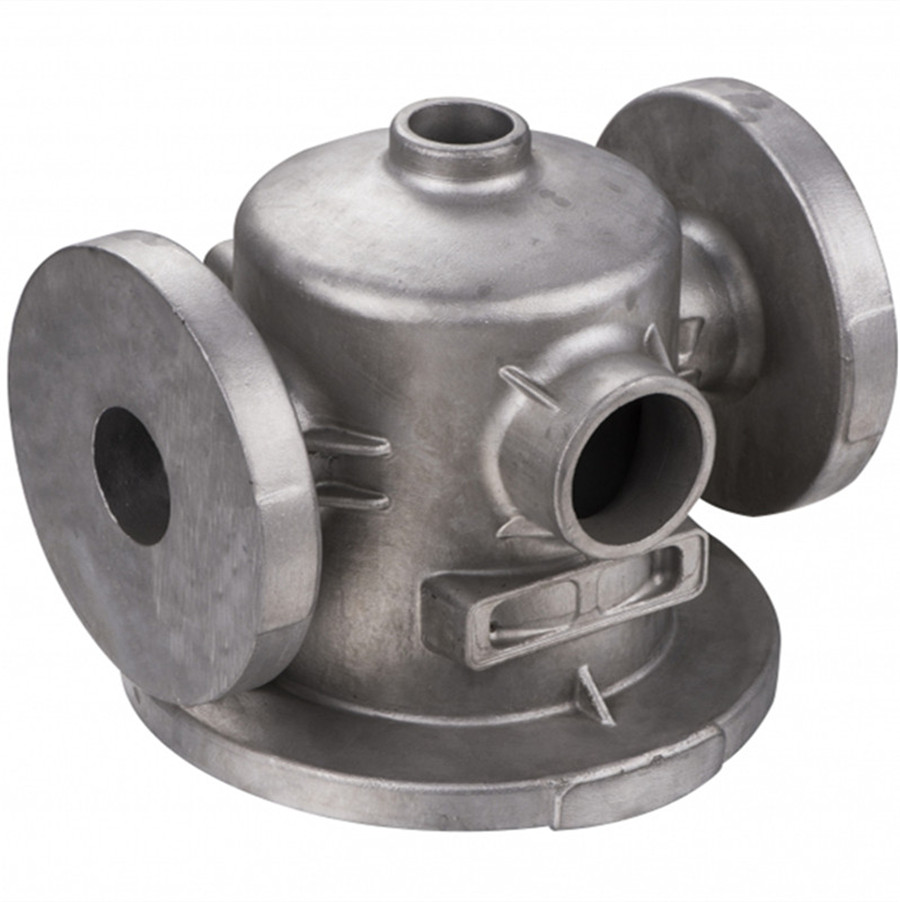

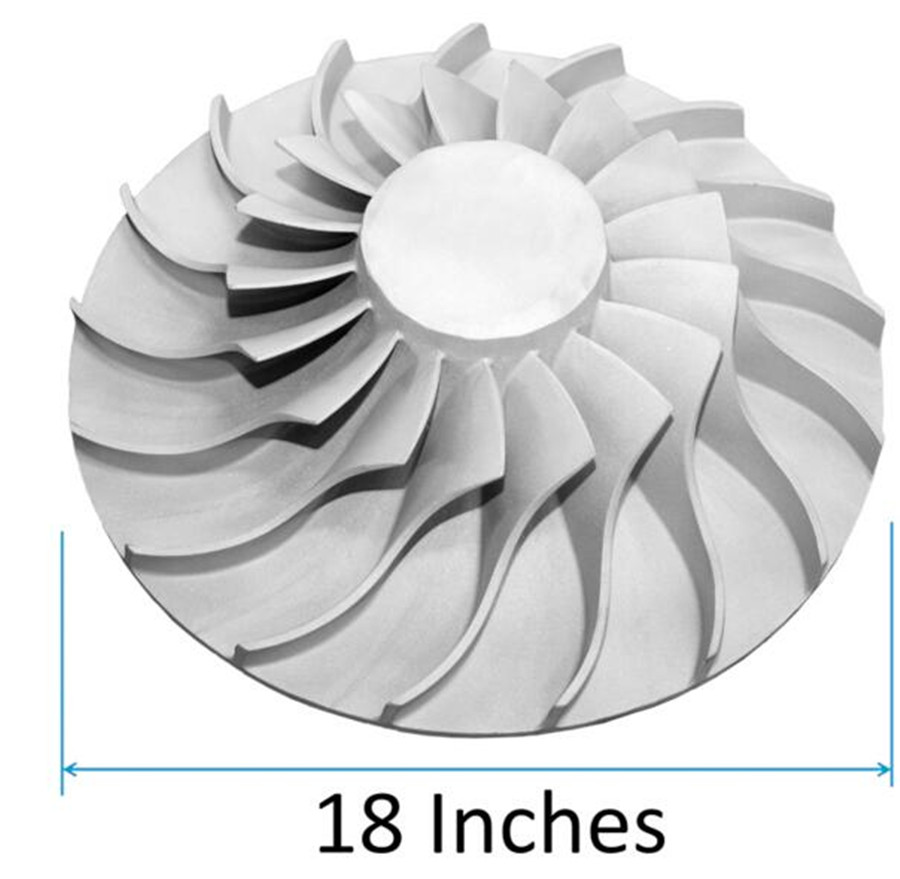

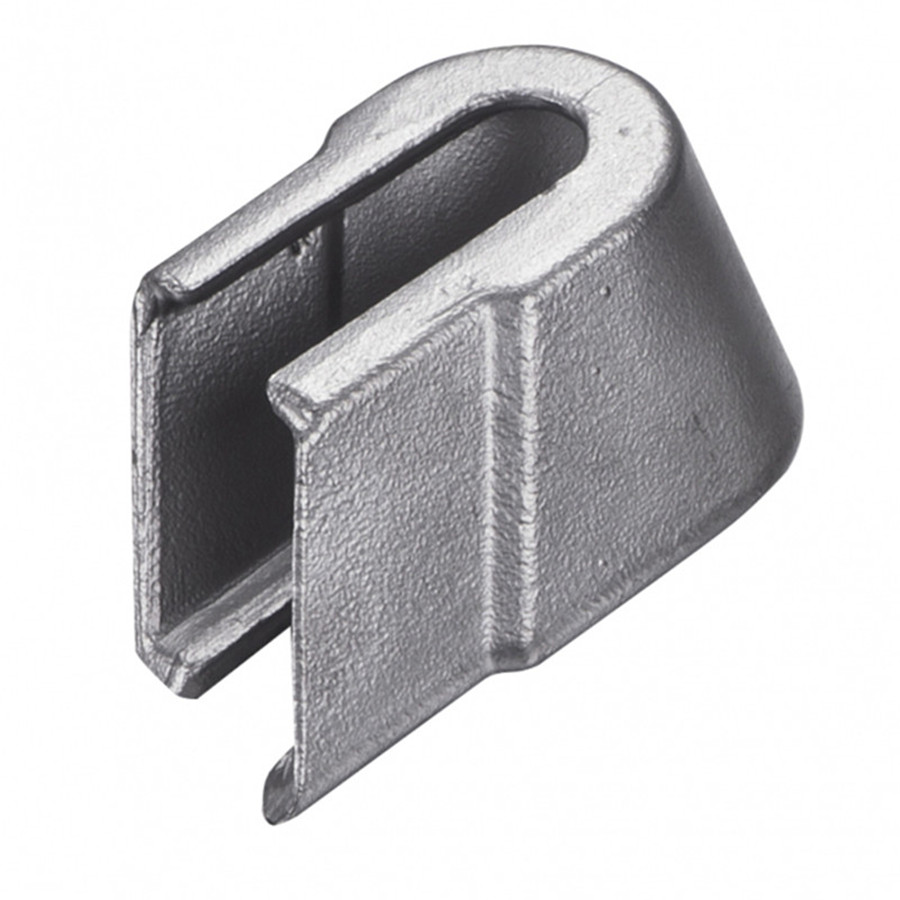

Product snapshot: Stainless Lost Wax Casting for Machinery Part

Where it works best

If you’re chasing corrosion resistance plus tidy geometry, this shines in pumps/valves, bottling and pharma handling (304/316 with passivation), and marine brackets. In many conveyor subsystems we see service life of 5–10 years, sometimes longer, assuming routine cleaning and no abrasive slurry exposure. Many customers say the maintenance delta versus welded fabrications is noticeable after year two.

Vendor comparison (quick reality check)

Customization, QC, and what buyers ask me all the time

• Design for lost wax casting: add uniform wall sections (2.5–6 mm), soft transitions, and casting radii (≥ 0.5 mm) to keep shells happy.
• Testing: PT (ASTM E1417), occasional RT; mechanicals to ASTM A370; corrosion checks per service (salt spray ASTM B117 for reference).
• Traceability: EN 10204 3.1 heat certs, lot-level SPC; capability targets Cpk ≥ 1.33 on CTQs.

Case study 1: 316L pump rotor, 11% weight reduction via topology tweaks; as-cast CT6, final bores to ±0.01 mm, service life projected 7–10 yrs in brackish water. Case study 2: 304 hanger bracket for a bottling line—polished and passivated; downtime cut by 18% per maintenance logs, which surprised even the line chief.

Practical buying notes

FOB from Gelan Building, No.256 Xisanzhuang Street, Shijiazhuang, Hebei, China. For recurring programs, lock a master gauge and PPAP-lite (even outside automotive) to stabilize revisions. And yes, DFM feedback early saves weeks—ask for shell simulations and gate/risers review before freezing tooling.

Citations

1. ISO 8062-3: Geometrical product specifications—Dimensional and geometrical tolerances for castings.
2. ASTM E1417/E1417M: Standard Practice for Liquid Penetrant Testing.
3. ASTM A743/A744: Standard Specifications for Castings, Iron-Chromium, Iron-Chromium-Nickel.
4. ASTM A967: Standard Specification for Chemical Passivation Treatments for Stainless Steel Parts.
5. ISO 9001:2015; IATF 16949:2016—Quality management systems.
6. EN 10204 3.1: Metallic products—Types of inspection documents.
