Field notes: stainless options for EN 545 water networks

Utility engineers keep telling me the same story: corrosion doesn’t sleep. That’s why projects built around ductile-iron to EN 545 increasingly specify stainless adapters and specials in the worst zones. If you’re evaluating en545 pipe fittings for potable-water lines, the conversation now includes precision-cast stainless alternatives—especially where soil resistivity dips or disinfectant residuals run high.

What’s shifting in the market

Two trends, honestly: lifecycle costing and sustainability. Stainless SS316 cast fittings (lost-wax) are winning pinch points—coastal mains, valve vaults with stray current, and desalinated water lines. Many customers say the up-front premium is offset by fewer interventions. On the vendor side, foundries that can machine to tight tolerances and document EN/ISO testing are getting short-listed first.

Process, materials, and testing (quick but thorough)

• Materials: SS316, SS304, 1.4310 (selective; contact surfaces for potable water can target NSF/WRAS on request).
• Method: Lost-wax precision casting → heat treatment (as needed) → CNC machining → passivation → marking.
• Dimensional tolerances: per ISO 8062-3 (CT6–CT8 typical; real-world use may vary by geometry).
• Interfaces: flange drilling per EN 1092-1 (PN10/16/25), so these stainless specials drop into EN 545 networks cleanly.
• Pressure: hydrostatic proof tests aligned with EN 545 network ratings; leak checks per ISO/EN procedures.
• Corrosion checks: ASTM A967 passivation; salt-spray reference ISO 9227 for coated or mixed assemblies.
• Traceability: heat-number stamping; material certs (EN 10204 3.1) when specified.
• Service life: ≈30–50 years in neutral soils for SS316; aggressive chlorides may shorten that—engineer accordingly.
• Industries: municipal water, hydrants/valves, pumps, rail rolling stock parts, trucks—yes, it’s versatile.

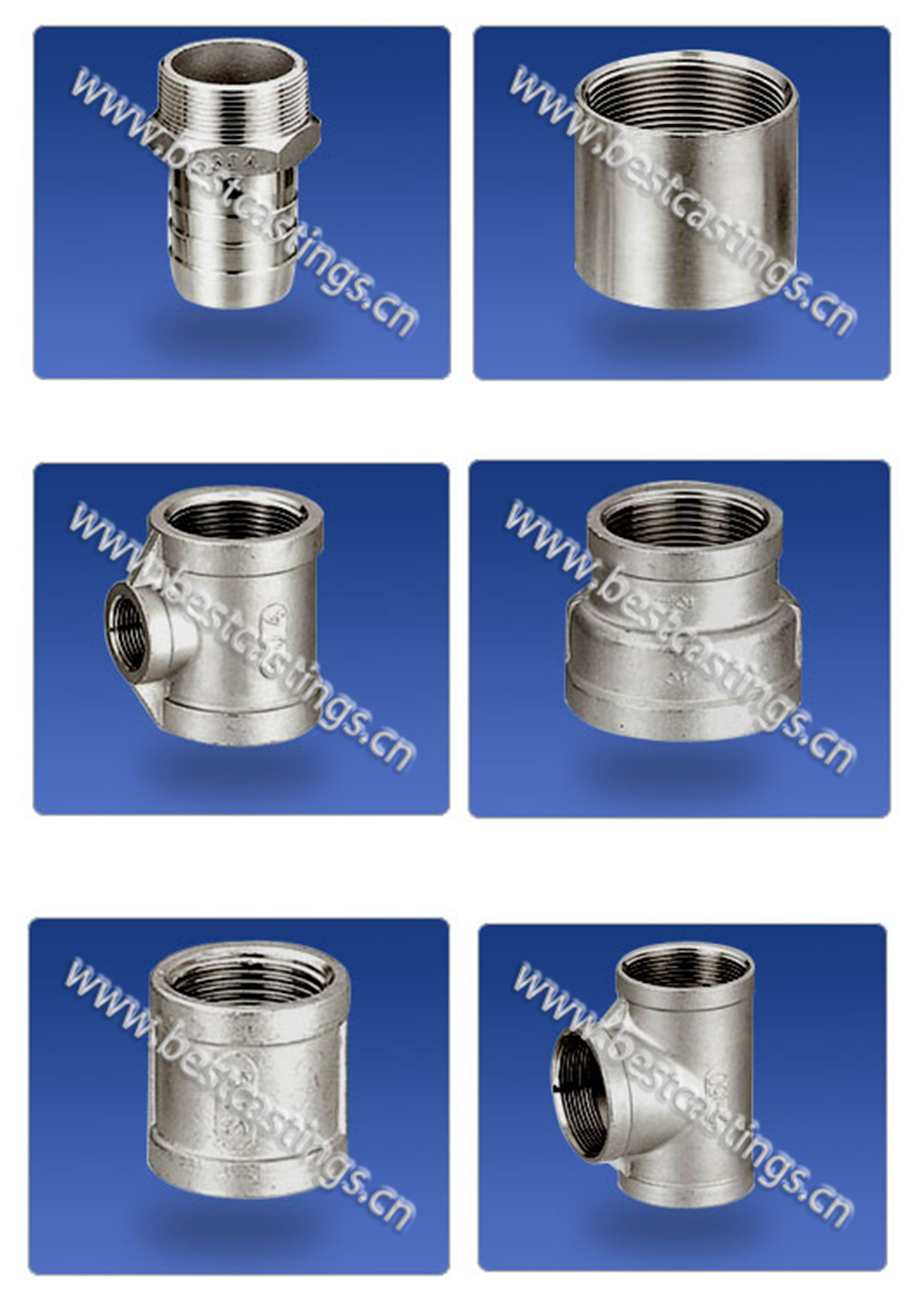

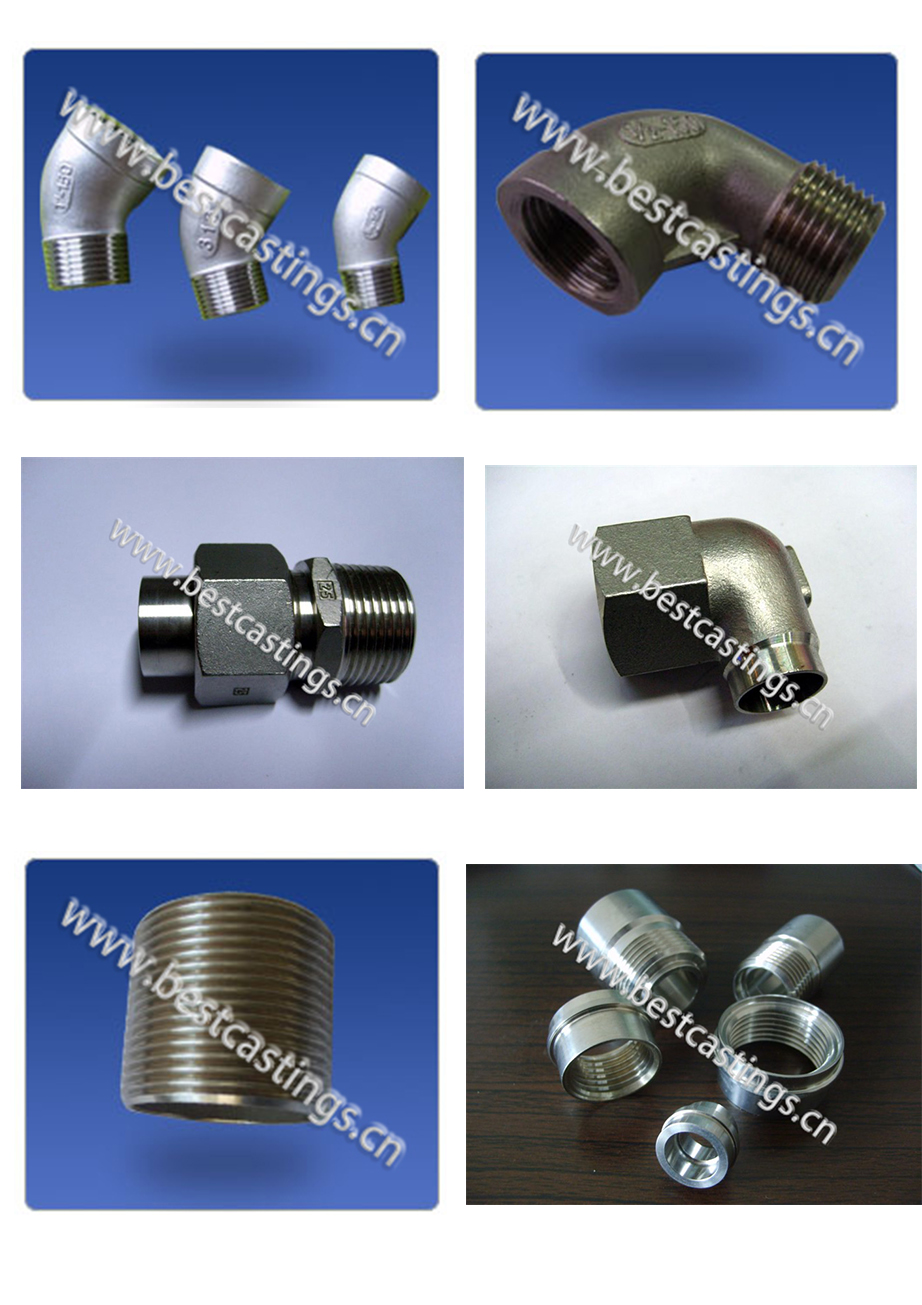

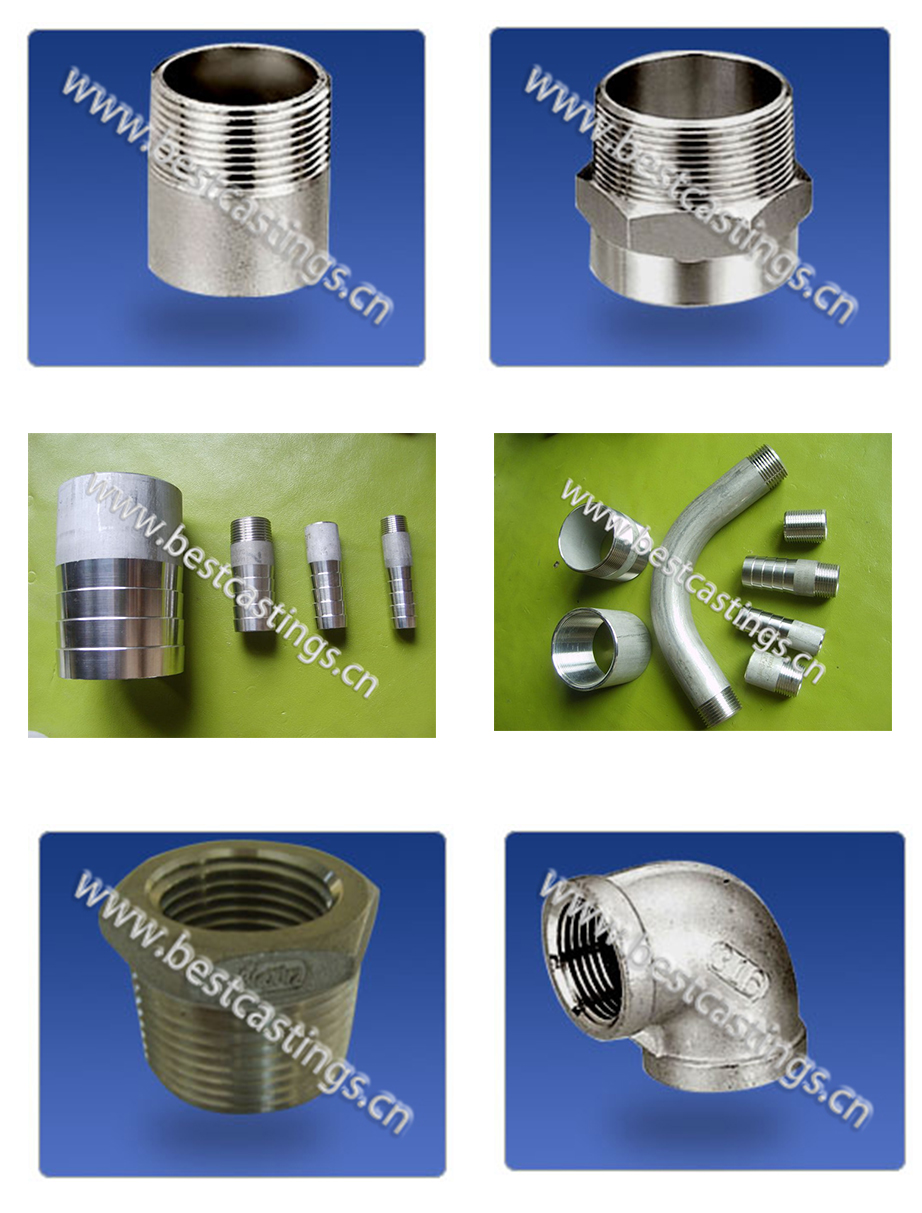

Product snapshot: Custom stainless steel pipe fittings

Applications and advantages

Use stainless specials at river crossings, valve chambers, or anywhere soil resistivity en545 pipe fittings to tame maintenance hotspots.

Vendor comparison (real-world buyer notes)

Customization and QC

Drawings in STEP/DWG, tolerances per function; machining set per actual tolerance need and batch size. Test coupons, PMI checks, and pressure tests are routine. Origin: Gelan Building, No.256 Xisanzhuang Street, Shijiazhuang, Hebei, China. For potable lines, ask for NSF/ANSI/CAN 61 or WRAS path—some clients do, others don’t. I’d rather over-document than debate later.

Case notes (brief but useful)

• Coastal main, PN16: swapping two ductile elbows for SS316 flanged bends cut leak calls by ≈70% over 24 months.
• Valve chamber retrofit: stainless adapter spools interfaced with en545 pipe fittings, zero red rust after 480 h NSS reference test; visual only, but it calmed the client.

Final thought

Stainless specials aren’t a silver bullet, but in the right pockets of an EN 545 network they’re a quiet win. If your spec calls for en545 pipe fittings, keep an open mind—stainless where it counts, ductile where it shines.

Citations

1. EN 545: Ductile iron pipes, fittings, accessories for water pipelines (CEN, latest edition).
2. EN 1092-1: Flanges and their joints — Circular flanges.
3. ISO 8062-3: Geometrical product specifications — Casting tolerances.
4. ISO 9227: Corrosion tests in artificial atmospheres — Salt spray tests.
5. NSF/ANSI/CAN 61: Drinking Water System Components — Health Effects; WRAS guidance for potable approvals.
