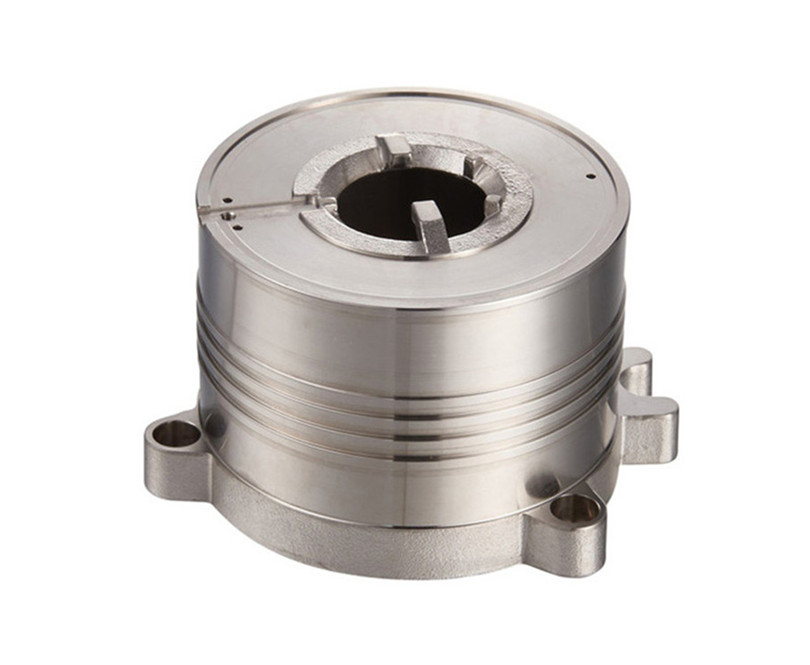

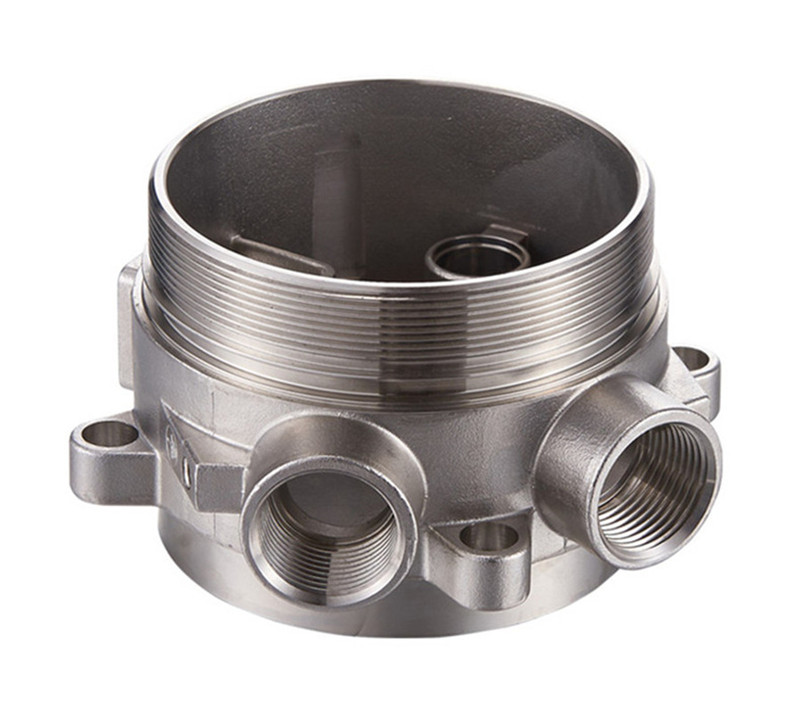

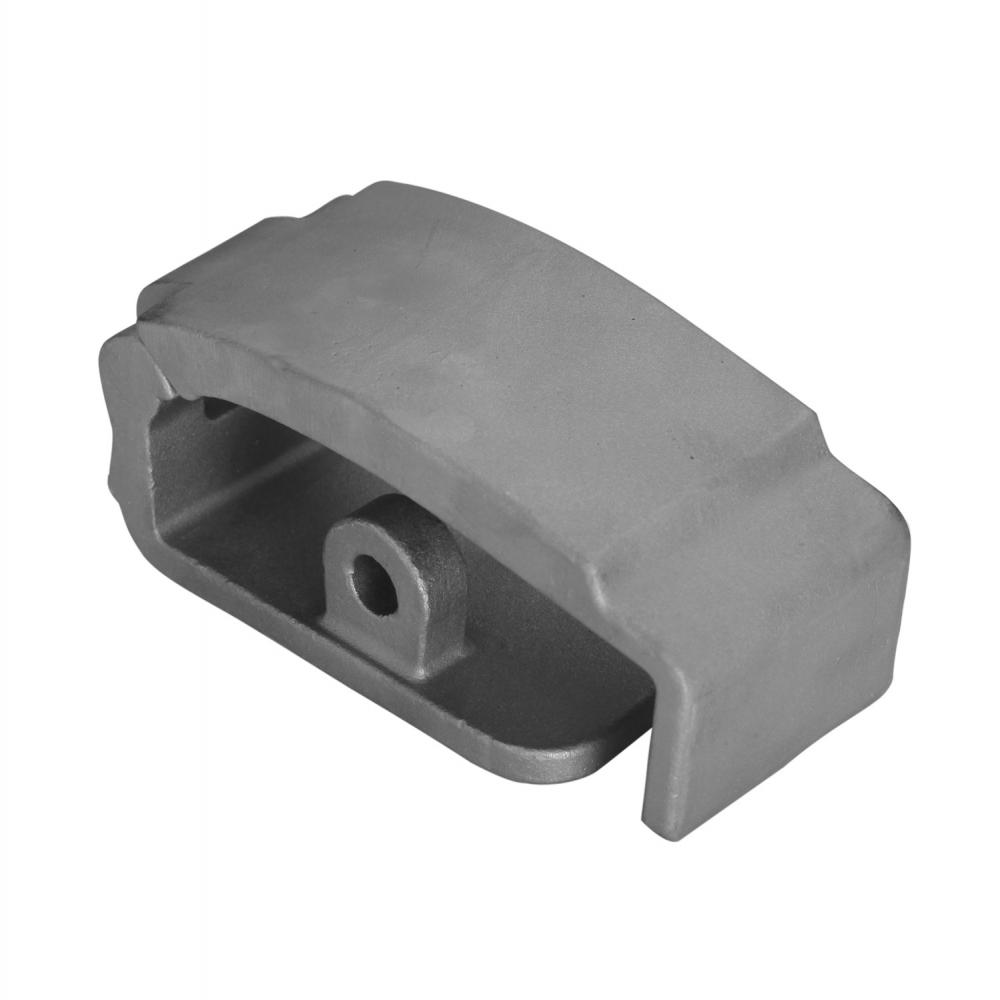

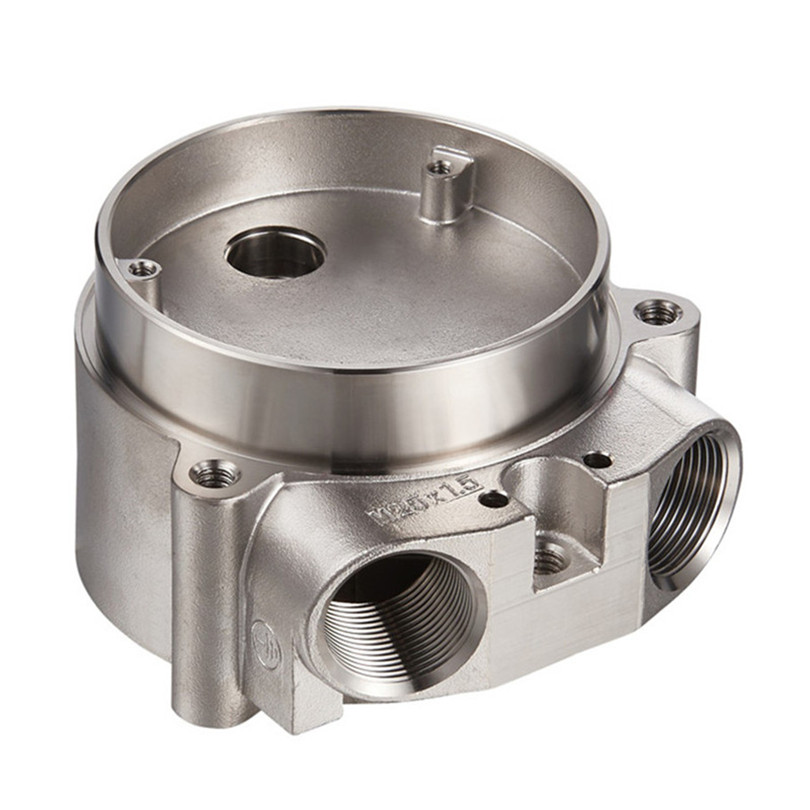

If you’ve ever stood next to a wax tree on a Monday morning, coffee in one hand and calipers in the other, you know the satisfaction of a well-made casting part. This piece from Mingda Metals comes out of Gelan Building, No.256 Xisanzhuang Street, Shijiazhuang, Hebei, China—an address I’ve actually scribbled into my notebook because shipments arriving from there tend to be punctual, which, frankly, saves headaches.
Trend-wise, stainless investment castings are climbing in sectors that demand cleanability and corrosion resistance—think food equipment, pumps/valves, and marine hardware. The mix here—thermal gravity pour, lost-wax process, polished finish to ≈Ra6.3—hits that sweet spot between precision and cost. To be honest, a lot of buyers underestimate how much consistency you get when wax gating is disciplined and shell thickness is tuned. This shop seems to get it.
| Process | Lost-wax (investment) + thermal gravity pour; pressure-assisted molding where applicable |
| Material | Stainless steel (e.g., 304/CF8, 316/CF8M, 17-4PH) per ASTM A743/A744 options |
| Surface finish | Polished; surface roughness ≈ Ra6.3 (real-world use may vary with geometry) |
| Dimensional tolerance | Typically ISO 8062 CT6–CT8 after process capability study |
| Typical tensile strength | ≈520–620 MPa (304/316 references); 17-4PH heat-treated higher |
| Post-processing | Deburr, polishing, passivation (ASTM A967), machining as needed |
DFM review → wax pattern → tree assembly → ceramic shell building (5–8 coats) → dewax → thermal gravity pour → knockout → cutoff & grind → heat treat (if spec’d) → CNC touch-ups → polishing → passivation → inspection → packaging. NDT: liquid penetrant (PT) and, where magnets help, MT; dimensional checks to ISO 8062; material certs per EN 10204 3.1. Salt-spray (ASTM B117) available for finish validation on request.
| Vendor | Strengths | Typical lead time | Certs |
|---|---|---|---|
| Mingda Metals (China) | OEM/ODM flexibility, polished finish control, responsive DFM | ≈4–6 weeks after tooling | ISO 9001; PPAP on request; EN 10204 3.1 |
| Foundry B (Asia) | Cost-competitive on large batches | ≈6–8 weeks | ISO 9001 |
| Foundry C (EU) | Traceability depth, niche alloys | ≈5–7 weeks | ISO 9001, IATF 16949 (select lines) |
Customization usually starts with a STEP file and a tolerance map. Many customers say, “Can you hold ±0.1 mm here?”—sometimes yes, sometimes we tweak the datum strategy or add a light finish pass. Test data I’ve seen includes PMI for grade verification, hardness checks (HB/HRB), and PT results logged to part number. Documentation set often ships with 3.1 certs; for automotive, PPAP levels are available when required.
A European pump OEM needed a 316 casting part with internal passages that machining alone would have blown the budget on. After a two-iteration DFM (minor fillet changes, smarter gating), CT7 was met, leak testing passed first shot, and the polish hit Ra≈6.0. Feedback was short and sweet: “Dimensional drift is basically gone.” I guess that’s the best kind of email.
If your spec leans on corrosion resistance, tidy cosmetics, and reasonable tolerances, this casting part format is a practical, production-friendly choice—especially with clear DFM, material certs, and a finish plan baked in.
